Repairing Cracks in Poured Concrete Walls

Cracks in poured concrete walls are a common issue faced by many homeowners. These cracks can occur due to various factors such as the natural curing process of concrete, shrinkage, thermal expansion, and contraction, or ground settlement. Repairing these cracks is essential to maintain the structural integrity of your home and prevent water infiltration, which can lead to further damage. In this article, we will discuss the causes of cracks in poured concrete walls, the tools and materials required for repair, and provide a step-by-step guide to fixing the problem.

Basement Wall Crack Repair

Causes of Basement Wall Cracks in Poured Concrete Walls

  1. Concrete shrinkage: As concrete cures, it naturally shrinks, which can lead to the formation of small cracks in the basement walls.
  2. Thermal expansion and contraction: Changes in temperature can cause concrete to expand and contract, leading to the development of cracks.
  3. Ground settlement: Uneven or poorly compacted soil beneath the foundation can cause the ground to settle, resulting in structural cracks in the concrete walls.
  4. Hydrostatic pressure: High levels of groundwater or poor drainage can cause hydrostatic pressure to build up against the foundation walls to foundation cracks.


Tools and Materials Required for Repairing Cracks in Poured Concrete Walls

  1. Hammer and chisel
  2. Wire brush
  3. Shop vacuum or air compressor
  4. Concrete crack repair epoxy or polyurethane injection kit
  5. Injection ports
  6. Putty knife
  7. Trowel

How are structural cracks repaired in a poured concrete basement wall?

Concrete Wall Crack Repair in Philadelphia, PA

  1. Identify the crack: Before starting the repair process, it’s essential to determine the type and severity of the crack. This will help you decide on the appropriate repair method and materials required.
  2. Clean the crack: Use a hammer and chisel to remove any loose debris from the crack. Follow up with a wire brush to clean the crack’s surface thoroughly. Finally, use a shop vacuum or an air compressor to remove any remaining dust and debris. Drill holes for injection ports into the crack.
  3. Apply the epoxy or polyurethane: Select a suitable concrete crack repair epoxy or polyurethane injection kit based on the crack’s size and location. Follow the manufacturer’s instructions for mixing and preparing the repair material. In some cases hydraulic cement may be used.
  4. Install plastic injection ports: Along the crack, insert the injection ports at regular intervals, typically 8-12 inches apart. Secure the ports in place using the epoxy or polyurethane adhesive.

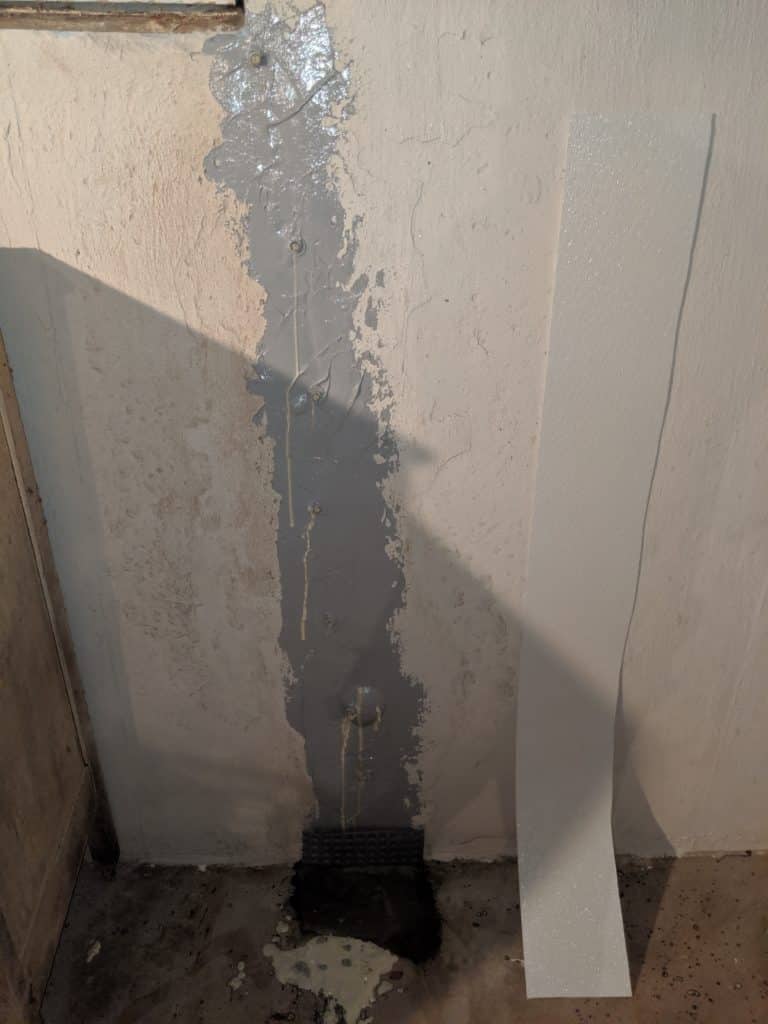

  5. Seal the foundation cracks: Using a putty knife, apply a thin layer of the epoxy or polyurethane adhesive over the crack, covering the injection ports. Ensure the adhesive is applied evenly and smoothly to prevent any leaks during the injection process. Allow the adhesive to cure for the time specified by the manufacturer.
  6. Inject the repair material: Once the adhesive has cured, inject the epoxy or polyurethane into the crack through the injection ports. Start at the lowest port and work your way up, injecting the repair material until it begins to flow out of the next port. Cap the first port and continue the process until all ports have been injected.
  7. Remove the injection ports from the basement wall: After the epoxy or polyurethane has cured, remove the injection ports by chiseling them off the wall.
  8. Finish the surface: Use a trowel to smooth out the surface of the repaired cracks in the concrete wall, blending it with the surrounding concrete.
  9. Monitor the repaired crack: Keep an eye on the repaired area to ensure the crack does not reappear or worsen. If the problem persists, consult a professional for further assessment and repair.


Horizontal Cracks in Concrete Foundations: Understanding the Causes and Solutions

Horizontal Crack in Foundation Wall

Horizontal cracks in concrete foundations are a cause for concern for homeowners, as they can indicate severe structural issues. These cracks may result from excessive soil pressure, water infiltration, and shifting or settling of the foundation. Repairing horizontal cracks is crucial to maintaining the structural integrity of your home and preventing further damage. This essay will discuss the causes of horizontal cracks in concrete foundations, the potential consequences if left untreated, and the repair methods available to address the problem.

Causes of Horizontal Cracks in Concrete Foundations

There are several factors that can contribute to the formation of horizontal cracks in concrete foundations:

Lateral soil pressure

Soil surrounding the foundation can exert significant lateral pressure, particularly in cases of expansive clay soils or high groundwater levels. When this pressure exceeds the concrete’s strength, it can result in horizontal cracks.

Freeze-thaw cycles

In colder climates like here in Philadelphia PA, freeze-thaw cycles can cause soil to expand and contract, increasing pressure on the foundation walls and leading to the development of horizontal cracks.

Poor construction techniques

Insufficient steel reinforcement, improper concrete mix, or inadequate curing can weaken the foundation, making it more susceptible to cracking under lateral pressure.

Ground settlement

Uneven or poorly compacted soil beneath the foundation can cause the ground to settle, resulting in horizontal cracks in the foundation walls.


Consequences of Horizontal Cracks in Concrete Foundations

If horizontal cracks in concrete foundations are not addressed promptly, they can lead to several significant issues, including:

  1. Structural damage: Horizontal cracks can compromise the structural integrity of the foundation, leading to further cracking, bowing, or even collapse.
  2. Water infiltration: Horizontal cracks can allow water to seep into the basement, leading to moisture issues, mold growth, and damage to belongings stored in the basement.
  3. Pest intrusion: Cracks in the foundation can provide entry points for pests, such as rodents and insects, which can cause damage and pose health risks.
  4. Decreased property value: Unaddressed foundation issues can significantly impact the resale value of your home, as potential buyers may be deterred by the potential costs and risks associated with repairing the foundation.


Repair Methods for Horizontal Cracks in Concrete Foundations

Several repair methods can be employed to address horizontal cracks in concrete foundations, including:

Wall anchors

Wall anchors are a popular method for stabilizing foundation walls with horizontal cracks. These anchors consist of metal plates installed on the interior and exterior sides of the wall, connected by steel rods. The anchors are tightened gradually to pull the wall back into its original position and provide lateral support.

Carbon fiber straps

Carbon fiber straps can be used to reinforce and stabilize foundation walls with horizontal cracks. These strong, lightweight straps are bonded to the interior surface of the wall, helping to distribute the lateral pressure and prevent further cracking.

Helical tiebacks

Helical tiebacks are a type of anchor system that is installed horizontally into the soil adjacent to the foundation wall. These tiebacks help provide lateral support to the wall, reducing the risk of further cracking or bowing.


In cases where ground settlement is the primary cause of horizontal cracking, underpinning may be necessary. This process involves strengthening the existing foundation by installing additional support, such as piers or piles, beneath the structure.


Horizontal Foundation Cracks

Horizontal cracks in concrete foundations pose a significant risk to the structural integrity of your home and should be addressed as soon as possible. Understanding the causes of these cracks and the available repair methods can help homeowners take appropriate action to maintain the stability and safety of their homes. Call Basement Waterproofing Scientists today to get a free inspection and estimate to repair cracks. Fixing foundation cracks is important to maintain the load bearing capability of the basement walls.
