Why Exterior Foundation Waterproofing Matters
How to waterproof exterior foundation wall is a critical skill for protecting your home from water damage and maintaining structural integrity. Here’s a quick answer to your search:
Quick Guide: Waterproofing Exterior Foundation Walls
1. Excavate soil around foundation down to the footing
2. Clean and prepare wall surfaces (power wash, remove debris)
3. Repair cracks and damaged areas with hydraulic cement
4. Apply waterproofing membrane (liquid or sheet)
5. Install drainage board or dimple mat
6. Place drainage pipe (French drain) at the footing
7. Backfill with proper materials, sloping away from home
8. Extend downspouts and improve landscaping grade
Water intrusion is no small problem—60% of U.S. homes have wet basements, and water accounts for 70% of construction litigation. When groundwater exerts hydrostatic pressure against your foundation walls, it finds every possible entry point, from tiny cracks to porous concrete.
Exterior waterproofing addresses the problem at its source by creating a barrier that prevents water from touching your foundation walls in the first place. This “positive-side” approach is far more effective than interior solutions that merely manage water after it’s already entered.
The average cost for professional exterior foundation waterproofing ranges between $4K and $8K, depending on the size of your home and the complexity of the job. While this might seem significant, it’s considerably less than the cost of repairing water damage, addressing mold issues, or dealing with structural problems down the road.
I’m Darin Garvey, and as a specialist with over 15 years of experience in how to waterproof exterior foundation wall projects, I’ve seen how proper waterproofing can transform damp, problematic basements into dry, usable spaces. Let me guide you through the proven techniques our team at Basement Waterproofing Scientists uses to ensure long-lasting protection for your home’s foundation.
The High Stakes of a Dry Foundation
When it comes to your home’s foundation, water is public enemy number one. And trust us—at Basement Waterproofing Scientists, we’ve seen just how quickly a simple leak can spiral into a homeowner’s nightmare. Across Philadelphia, Reading, and all over Pennsylvania, we get called in to fix everything from persistent damp spots to major structural damage caused by water intrusion.
Why are the stakes so high? It all comes down to hydrostatic pressure. This invisible force builds up as groundwater collects in the soil around your house, pressing relentlessly against your foundation walls. Just one inch of water in the soil can push with a force of up to 250 pascals—that’s about as strong as 70 mph winds! Every tiny crack or weak spot in your foundation becomes a potential entryway for that pressure-driven water.
We often hear stories like the one from our client in Lansdale. Their foundation walls were actually bowing inward, pushed by hydrostatic pressure. By the time they called us, cracks had spread and water was leaking in at every heavy rain. It took $12,000 in structural repairs to set things right—far more than the cost of waterproofing would have been at the start.
According to the American Society of Home Inspectors, 60% of U.S. homes have wet basements, and about 38% face the risk of mold due to moisture. This isn’t just about comfort—it’s about your family’s health, your home’s value, and even legal headaches (did you know water damage is responsible for roughly 70% of construction litigation?).
Water Infiltration Risks Explained
Water infiltration is more than just a nuisance—it can wreak havoc in ways you might not expect:
Freeze-Thaw Cycles are a big deal in Pennsylvania. Water seeps into hairline cracks, freezes when temperatures drop, and expands. Every winter, those cracks get just a little bigger. We’ve seen hairline cracks in Upper Darby grow to half an inch wide in only a few years without waterproofing.
Efflorescence is that stubborn white chalky stuff you sometimes see on your basement walls. It’s a clear sign water is moving through your concrete, dissolving minerals and weakening your foundation as it goes. It’s not just ugly—it’s a warning signal that moisture control is overdue.
Bowed Walls are another major threat. When hydrostatic pressure is left unchecked, it can actually push your foundation walls inward. At that point, you’re looking at serious fixes like carbon fiber straps or steel braces—solutions that cost much more than prevention.
Indoor Air Quality can suffer as well. Believe it or not, up to 50% of the air you breathe in your home can come up from your basement, thanks to something called the “stack effect.” If your basement is damp, it becomes prime real estate for mold and mildew. These release spores that can cause allergies, asthma, and other breathing problems. We once helped a family in Norristown who struggled with respiratory issues for years, only to find black mold behind their finished basement walls—a direct result of a persistently damp foundation.
When you consider all these risks, it’s clear that learning how to waterproof exterior foundation wall is one of the smartest moves you can make for your home. Not only does it help you avoid expensive repairs, but it also protects your family’s health, your property value, and your peace of mind.
If you want lasting results, trust the pros at Basement Waterproofing Scientists. With three decades of experience, we have the know-how—and the right equipment—to find and fix every leak source for less. And we back our work with a lifetime guarantee.
Damp Proofing vs. Waterproofing: Spot the Difference
At Basement Waterproofing Scientists, one of the questions we hear over and over is: “Aren’t damp proofing and waterproofing basically the same thing?” The short answer is—absolutely not! Understanding the real difference can save you headaches, health concerns, and a whole lot of money down the line.
Let’s start with damp proofing. This is what most new homes get—usually an asphalt-based coating that’s sprayed or brushed onto the outside of the foundation. It’s cheap, quick, and technically meets basic building codes. But here’s the rub: damp proofing is only meant to stop soil moisture and vapor, not actual water. So when heavy rain, high water tables, or saturated soil put hydrostatic pressure on your foundation, damp proofing just can’t keep up.
The reality? Damp proofing doesn’t seal cracks, can’t handle water pressure, and breaks down fast if standing water lingers. It won’t bridge new gaps if your foundation shifts, and it leaves your home vulnerable if the soil gets really wet. It’s the “bare minimum” option—fine for dry climates, risky for Pennsylvania.
Now, contrast that with waterproofing. True waterproofing is a system, not just a quick coat. When you ask us how to waterproof exterior foundation wall, we’re talking about a multi-layer barrier—think robust membrane (like liquid rubber or a peel-and-stick sheet), drainage boards or dimple mats for air gaps, and a full drainage system at the footing. This combo forms a true capillary break and is built to resist serious hydrostatic pressure.
Why does this matter? The 2021 International Residential Code (IRC) Section R406 says it all: damp proofing is the minimum, but waterproofing is required anywhere high water tables or tough soil-water conditions exist. (You can double-check that here in the official IRC code.) And science backs it up: Research from the Department of Energy shows that the right moisture control systems prevent costly problems down the road.
Why Waterproofing Beats Damp Proofing Every Time
Think about cost and value. The average price for professional waterproofing is $4K to $8K. Yes, that’s more than damp proofing. But compare that to the bill for fixing a water-damaged basement (usually between $2,300 and $7,300), or—gulp—major structural repairs, which regularly top $20,000. Suddenly, waterproofing looks like a bargain.
Plus, a waterproofed basement adds real value to your home. A dry, healthy basement means more usable space, better air quality, and more resale value—up to a 30% return on investment by some estimates. And let’s not forget the peace of mind and long-term security. At Basement Waterproofing Scientists, our exterior waterproofing comes with a lifetime, transferable warranty. Try getting that from damp proofing!
As one of our Radnor Township clients said after seeing a neighbor pay $15,000 for basement repairs: “Waterproofing wasn’t an expense. It was insurance.”
So, when you’re weighing your options for keeping your foundation dry, remember: damp proofing is the band-aid, but waterproofing is the cure. If you want a truly dry, healthy, and worry-free basement, how to waterproof exterior foundation wall the right way means choosing a full waterproofing system from the start.
Ground Rules: Soil, Climate, Codes & Materials
Before you even start planning how to waterproof exterior foundation wall, it pays to know that every home is different. At Basement Waterproofing Scientists, we begin every project with a real, old-fashioned walkaround—boots in the mud, poking at the dirt, and a few questions about your neighborhood storms. Why? Because the right waterproofing system depends on so much more than just slapping on a coat of goop.
Let’s dig into what truly matters before you get started.
Soil Conditions
The ground beneath your feet is not all the same. In our part of Pennsylvania and New Jersey, the most common troublemaker is clay soil. When it rains, clay holds onto water like a sponge and swells up, pressing against your foundation even harder. When it dries, it shrinks and can crack—taking your waterproofing with it if you’re not careful.
If your home sits on sandy soil, you’re in luck with drainage, but don’t cheer just yet. Sandy ground isn’t great at holding shape, so digging a deep trench for waterproofing takes extra care to keep things from caving in.
And if you’ve got a house built on fill soil (pretty common in places like King of Prussia), pay special attention. Fill soil is looser and can trap extra water, creating a “false water table”—essentially a sneaky underground puddle that can keep your foundation soggy all year.
Climate Factors
Our local climate is a rollercoaster for foundations. Those freeze-thaw cycles in winter mean water in tiny cracks can freeze, expand, and make cracks much worse. In spring and fall, heavy rains add to the challenge. Add in the snowmelt each spring, and suddenly your foundation is under a lot of stress. Flexible, heavy-duty waterproofing is not just nice—it’s necessary.
Code Requirements
Don’t let building codes fool you—doing the bare minimum rarely keeps your basement dry. The International Residential Code (IRC) Section R406 sets baseline rules:
- If your area has a high water table or tough soil conditions, you need proper waterproofing, not just a basic dampproof coating.
- Waterproofing should run from the footing all the way to the finished grade.
- All joints and pipe penetrations must be sealed up tight.
- Only approved materials—like bituminous coatings, rubberized asphalt, or liquid membranes—can be used.
Some municipalities around the Delaware River ask for even more, especially if flooding is common. Always check your local rules.
Foundation Types
No two foundations are exactly alike, and each needs a custom approach:
- Poured Concrete is strong and less porous, but you still need to seal those cold joints and any pipe holes.
- Concrete Block (CMU) foundations are more porous, so extra prep—like parging—is usually required before any waterproofing can go on.
- Stone Foundations (think old, charming homes in Pennsylvania) can be tricky. You’ll need special techniques to prep and smooth the stones before a membrane will stick.
Selecting the Right Membrane & Coating
Now for the fun part—choosing your waterproofing armor! There are dozens of products out there, and the right one depends on your home’s unique mix of soil, climate, and construction. Here’s how we break it down at Basement Waterproofing Scientists:
- Liquid-Applied Membranes are like painting on a flexible raincoat. They form a seamless, rubbery barrier that’s perfect for homes with lots of nooks and crannies.
- Sheet Membranes come in pre-made rolls. They’re quick to apply on large, smooth walls and give consistent thickness.
- Cementitious Coatings bond right to concrete and block walls and can resist pressure from the outside. They’re breathable, too!
- Crystalline Waterproofing soaks into the concrete itself, blocking water by growing crystals inside those tiny pores. If you have a poured concrete foundation, this is a high-tech solution with “self-healing” superpowers.
- Drainage Mats/Dimple Boards aren’t waterproofing on their own, but they’re the unsung heroes of the system. They create an air gap to keep soil off your wall and guide water down to your footing drains, all while protecting your membrane during backfill.
The “best” setup is all about your situation. For high groundwater and stubborn clay in Bristol Township, we might team up a thick liquid-applied membrane with a heavy-duty drainage mat. For a vintage stone foundation in Conshohocken, we often start with parging, add cementitious waterproofing, and finish with a drainage system.
Bottom line: The best way to figure out exactly how to waterproof exterior foundation wall for your home is to get a professional site assessment. At Basement Waterproofing Scientists, we use specialized tools to check soil, water table, and foundation type—so we can design a solution that actually works, not just one that looks good on paper.
If you’d like to learn more about the products and systems we recommend, check out our moisture control resource or head to our Services page to see how we can help keep your basement dry for good.
Step-by-Step: How to Waterproof Exterior Foundation Wall
Ready to tackle how to waterproof exterior foundation wall like the pros? Let’s walk through the process, just as we do at Basement Waterproofing Scientists. After 30 years and thousands of dry basements, we know every step counts—and a little experience (and humor) goes a long way!
Step 1: Excavation
First things first: you’ve got to reach those foundation walls! We start by excavating the soil around your home’s perimeter down to the footing. This usually means digging a trench about 2–3 feet wide—enough space for our team (and their coffee mugs). If the wall is deeper than four feet, we make sure to shore up the trench for safety.
We always do our best to protect your landscaping, so your prized hydrangeas stay happy. Old waterproofing materials (if any) are removed, since new products only work if they’re applied to clean, stable surfaces.
As our senior project manager likes to say, “Excavation is where it pays to have someone who knows what they’re doing—like when we found stepped footings in Willow Grove that could have been missed by an amateur.”
We use specialized equipment and careful methods to minimize mess and make sure your yard survives the process.
How to Waterproof Exterior Foundation Wall: Surface Prep & Crack Repair
Once we’ve got access, the next step is giving the wall a thorough cleaning. We power wash the entire surface, remove dirt and debris, and use special cleaners to get rid of stubborn efflorescence (that white, chalky stuff). Everything needs to be dry enough for the next steps—timing depends on the weather.
Careful inspection comes next. We look for cracks, gaps, or any rough patches. Even tiny cracks (less than 1/16 inch) get filled with hydraulic cement or special crack repair systems. If we find bigger cracks, we chisel them into a “V” shape and fill them up tight. Structural cracks may need extra reinforcement with carbon fiber or steel before moving on.
If you have a block or stone foundation (like so many historic Pennsylvania homes), we might need to repoint old mortar joints or add a thin parging coat to smooth things out. Skipping this step is a recipe for failure—the waterproofing membrane needs a good surface to stick to.
As our restoration specialist recalls, “We once had a fieldstone foundation from the 1800s in Quakertown that needed serious smoothing before we could even think about waterproofing. That extra effort made all the difference.”
How to Waterproof Exterior Foundation Wall: Membrane, Drain & Backfill
Here comes the heart of how to waterproof exterior foundation wall—and the part that really keeps your basement dry.

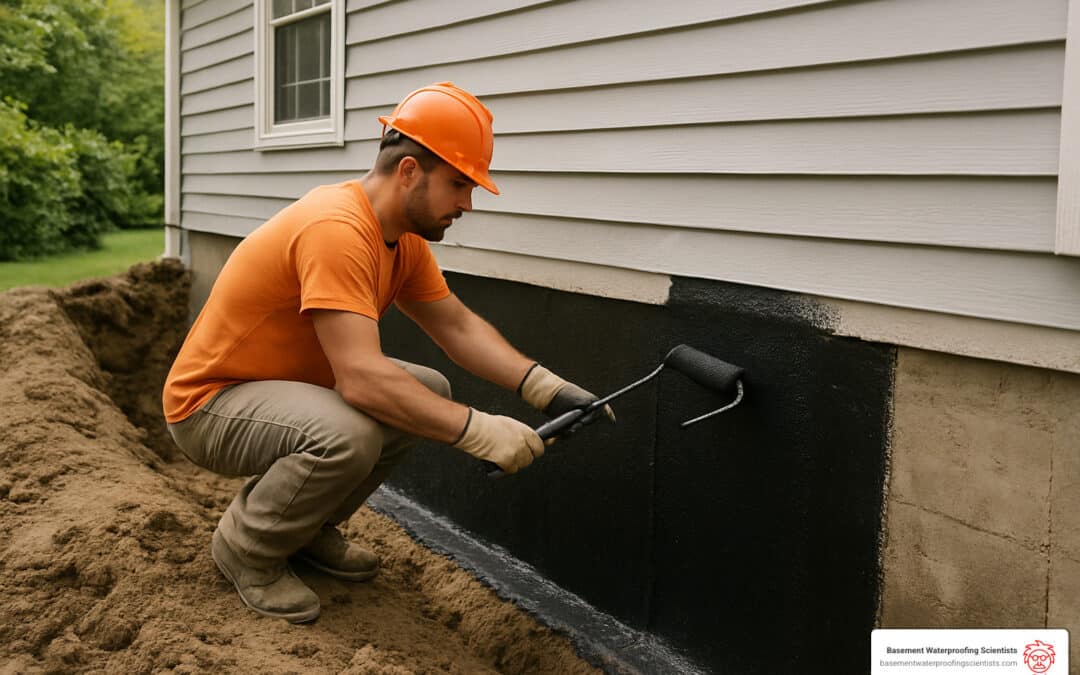

We apply a waterproofing membrane according to what works best for your foundation. Sometimes that’s a liquid membrane, rolled or sprayed on thick and even. Other times it’s a sheet membrane, rolled out carefully with seams overlapped by 6–8 inches. The membrane should reach from just below the top of the footing to about six inches below the final grade line. We give special attention to corners, penetrations, and the joint where the wall meets the footing. After that, we let it cure fully.
Next, we install a drainage board or dimple mat over the membrane. This creates an air gap, channels water straight down to the footing drain, and protects the membrane during backfill. We secure the top edge to keep soil out and overlap seams in the direction water flows.
Now, for the French drain. We dig a trench at the base of the foundation, lay down filter fabric, and then install a 4-inch perforated drain pipe sloped at 1/8 inch per foot. Washed gravel surrounds the pipe, and we wrap everything in filter fabric to stop soil from clogging the drain. The pipe leads to a discharge point or sump pump, depending on your property’s drainage.
Backfilling is just as important. We start with clean, well-draining soil right next to the drainage board—no sharp rocks allowed. Backfill happens in 6–8 inch layers, each one compacted for stability. The final grade is shaped to slope away from your foundation (think: at least a 6-inch drop over 10 feet), so water heads away from your home instead of toward it.
Our field supervisor puts it simply, “Shortcuts in backfilling can ruin even the best waterproofing job. We’ve seen drainage boards crushed and membranes punctured because someone dumped big clumps of clay right back in the trench.”
At Basement Waterproofing Scientists, we pride ourselves on doing every phase right—not just because we guarantee our work, but because we want your basement to stay dry for good.
These steps are the foundation (pun intended) of permanently dry, healthy basements. If you want to dive deeper into any of these techniques or see real-world examples, check out Waterproofing Exterior Foundation Wall and Foundation Sealant for more information.
A waterproofing system is only as strong as its weakest link! That’s why every detail matters.
Drainage, Landscaping & Long-Term Care
A dry basement starts with good waterproofing, but it doesn’t stop at the foundation wall. The real secret? Managing water across your whole property. Here’s how we make sure our clients at Basement Waterproofing Scientists stay dry for life.
Yard Grading
Let’s start with something simple: the slope of the ground around your house. If the soil tilts toward your home, water will follow—straight for your foundation. For long-term dryness, your yard should slope away from the house at least 6 inches over the first 10 feet. Believe it or not, we see even beautiful old homes in Ardmore and Bryn Mawr that have settled so much, their yards now funnel water right into the basement! Fixing the grade can be just as important as how to waterproof exterior foundation wall in the first place.
Gutter and Downspout Management
Your roof can dump thousands of gallons of water during a good old Pennsylvania thunderstorm. If that water lands right next to your foundation, even the best waterproofing system will struggle. One Springfield Township homeowner learned this the hard way; their downspouts stopped just a foot from the house, and water pooled until it found a way in.
Here’s what works: keep gutters clean (aim for at least twice a year), consider gutter guards if leaves are a problem, and most importantly, extend downspouts at least 6 to 10 feet away from your home. Underground extensions keep things tidy and safe. If you forget this step, water can sneak back in, no matter how well you waterproofed.
Window Wells
Basement windows below ground level are a common trouble spot. Install window wells that sit at least 6–8 inches above the ground, and fill the bottom with gravel for drainage. Clear covers can keep out rain, leaves, and raccoons (who, let’s be honest, have no business in your basement). Last but not least, make sure the window itself is tightly sealed and properly waterproofed, so water can’t sneak through.
Maintenance Schedule
Even the best exterior foundation waterproofing needs a little TLC now and then. We recommend a simple maintenance routine:
- Each month: After it rains, check around your foundation—are there puddles? Make sure your downspout extensions are still in place.
- Each season: Clean your gutters and downspouts, clear debris from window wells, and inspect backfilled areas for settling.
- Each year: Look at any visible foundation—do you see new cracks? Has the slope changed? If you have a sump pump, give it a test run.
- Every five years: Bring in a pro for a full checkup. Fix small problems before they turn into big, expensive ones.
Common Mistakes to Avoid
At Basement Waterproofing Scientists, we’ve seen it all—good, bad, and ugly. The most common ways homeowners (and even some pros!) sabotage their waterproofing jobs include: skipping surface prep, using the wrong membrane, not covering the right areas, damaging the protection board during backfill, designing poor drainage, using bad backfill soil, or just forgetting about site drainage altogether. How to waterproof exterior foundation wall isn’t just about the wall—it’s about the whole system working together.
Integrating French Drains & Downspouts for Zero Hydrostatic Pressure
The gold standard for dry basements? Zero hydrostatic pressure on your foundation walls. That’s the aim of a well-designed French drain system. A good French drain needs to slope at least 1/8 inch per foot, use a 4-inch pipe as a minimum, and have clean-outs for maintenance. It should end at a proper discharge, like a daylight outlet, a sump pump, or a storm sewer.
The real magic happens when you connect your downspouts to your foundation drains. Use solid pipe (not perforated!) to move roof water well away from your house, and wrap everything with filter fabric to keep out the dirt. Inspection ports at key spots make future maintenance a breeze.
Our favorite project? A Hatboro family who had us tie their whole roof and footing drainage system into a rain garden 30 feet from the house. Record rainfall? Their basement is still bone dry.
Annual Check-Up & Re-Seal: Keeping the Barrier Strong
Soil isn’t static. It shifts as the seasons change. That means your waterproofing needs a yearly checkup. Every spring, take a walk around the house and look for:
- Damaged or exposed membrane
- Seams or edges that have pulled away
- New cracks in exposed foundation
- Any pooling water near the walls
Basement Waterproofing Scientists offers annual maintenance plans for our Philadelphia-area customers. We’ll check your system, make minor repairs, look over your drainage, and even suggest landscape tweaks if needed.
Think of your waterproofing like your car—a little maintenance goes a long way towards preventing big, expensive failures down the road. With regular care and a smart drainage plan, a dry basement is not just possible—it’s guaranteed.
For more information about keeping your basement dry for life, see our Basement Waterproofing Solutions page.
Conclusion
Waterproofing your exterior foundation walls isn’t just another home improvement—it’s a smart investment in your house, your health, and your peace of mind. By creating a tough, lasting barrier between your home and the relentless Pennsylvania elements, you’re protecting your family from mold, foundation cracks, and those “uh-oh” moments when you spot water pooling where it shouldn’t.
At Basement Waterproofing Scientists, we’ve spent three decades perfecting the science of how to waterproof exterior foundation wall systems. We use specialized equipment to find the real source of leaks, and that means we can fix the problem—often for less than you’d expect. Most jobs fall between $4,000 and $8,000, which is a lot less painful than paying for major repairs or living with constant dampness.
Every project starts with a thorough inspection. We look at your foundation, soil, drainage, and any water issues you might already be facing. There’s no guessing here—just honest, expert analysis and a customized plan that fits your home’s unique needs.
Once your system is in place, you can breathe easy. Our lifetime transferable warranty means your dry basement is guaranteed for as long as you own your home—and even after you sell, since the warranty goes straight to the next owner. That peace of mind isn’t just good for your nerves; it can also boost your property value when it’s time to move.
Whether you’re battling an active leak or just want to head off trouble before it starts, we’re here for you. We serve homeowners throughout Philadelphia, Reading, Norristown, and the surrounding areas in Pennsylvania, New Jersey, and Delaware. We’ve worked on everything from historic stone foundations to modern poured concrete homes, and our mission is always the same: deliver a dry, healthy basement that lasts.
So, don’t wait until your basement turns into an indoor pool or you start seeing mold creeping up the walls. Reach out to Basement Waterproofing Scientists for a free, no-pressure assessment. Let’s figure out exactly what your home needs to stay dry—once and for all.
When it comes to how to waterproof exterior foundation wall, trust the folks who treat your home like it’s their own. Because at the end of the day, you deserve a foundation that’s strong, dry, and built to last.
Want to learn more or get started? See our exterior foundation waterproofing services here or give us a call—your future self will thank you for it!
