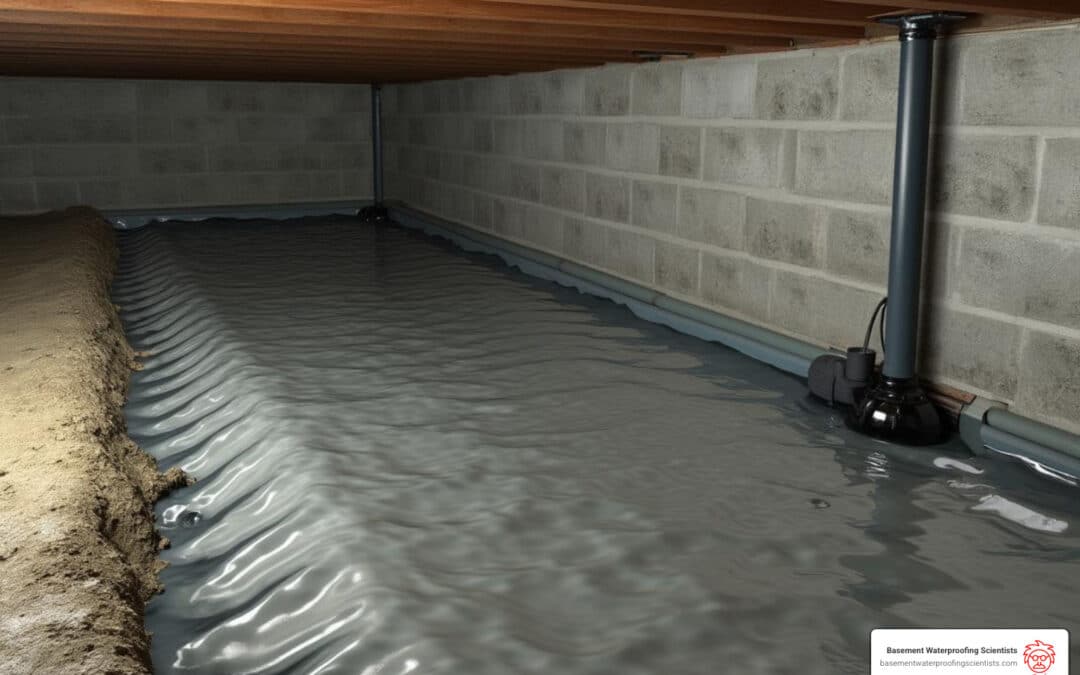

A crawl space drainage system collects liquid water and carries it to a suitable outlet. It may use gravity drainage or a sump and pump, depending on site elevations and discharge requirements. A ground vapor barrier and dehumidifier serve different functions and do not replace drainage where standing water is present.

What should be diagnosed first?

Determine whether water comes from runoff, groundwater, plumbing, equipment condensate or another source. Record when it appears and the areas affected. Musty odors, high humidity and damaged insulation deserve investigation, but do not alone prove that perimeter drains are needed.

Compare collection and removal options

Component Purpose
Surface water corrections Reduce runoff reaching the foundation.
Perimeter or targeted collection Collect water in the locations supported by the assessment.
Gravity outlet Carry water to a suitable lower discharge point where feasible.
Sump and pump Lift collected water where pumping is required.
Discharge line Carry water to a suitable destination without returning it to the foundation.

The Building America existing crawl space guide emphasizes addressing water management before enclosure work.

What must the proposal include?

  • The diagnosed source and exact collection area.
  • Drain assembly, elevations, connections and inspection access.
  • Pump selection, electrical arrangements and backup options where relevant.
  • The intended discharge route and applicable approvals.
  • Protection of footings, utilities and existing structural components.
  • Restoration and maintenance responsibilities.

How does drainage work with encapsulation?

Drainage manages liquid water. A properly detailed ground liner limits vapor from exposed soil. A drying strategy manages moisture in air. Air sealing and insulation affect the complete crawl space assembly and must account for appliances, access, pest inspection and required flood openings.

Do not simply close vents over a wet space. Review our vent sealing planning guide and ground liner guide.

Common questions

Will drainage repair rotten framing?

No. Existing material damage needs separate assessment and repair.

Does every crawl space need a sump pump?

No. Elevations, water source and discharge conditions determine whether pumping is appropriate.

Will a drain eliminate every musty odor?

Not necessarily. Existing contamination, damp materials and other moisture sources may remain.

How should performance be checked?

Observe the original wet areas after rain, inspect accessible components and follow the system’s service instructions.
