Can Vapor Barrier Be Installed Over Damp Sand Crawl Space? (Quick Answer)
Can vapor barrier be installed over damp sand crawl space – yes, but it requires careful preparation and the right materials to avoid trapping moisture that leads to mold and structural damage.
Quick Answer:
– Safe Installation: Only when sand moisture is reduced below 15% or proper drainage is added
– Material Requirements: Use minimum 6-mil polyethylene, preferably 10-20 mil reinforced
– Preparation Needed: Dry sand with fans/dehumidifiers or install drainage layer first
– Risk Factors: Trapped water can cause mold, wood rot, and pest problems if done incorrectly

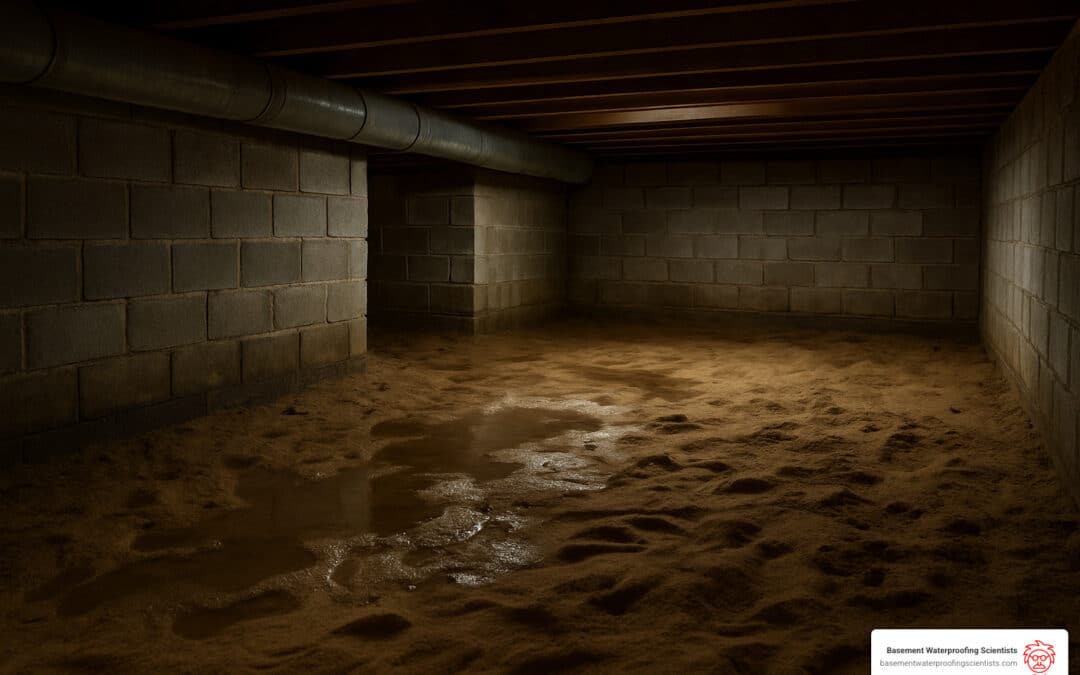

Finding water pooling on your crawl space floor after heavy rain is never pleasant. Many homeowners face this scenario – musty smells, cold spots in winter, and concerns about what’s happening beneath their home.
Damp sand in crawl spaces creates unique challenges that differ from typical dirt floors. Sand drains better than clay but can still hold significant moisture from groundwater, poor grading, or seasonal flooding. Without proper moisture control, this dampness rises into your living space, affecting indoor air quality and potentially causing thousands in structural damage.
Installing a vapor barrier over damp sand is possible with the right approach. Unlike simply throwing plastic over wet soil, modern techniques focus on moisture management before barrier installation.
As Darin Garvey from Basement Waterproofing Scientists, I’ve spent over 30 years helping homeowners tackle challenging crawl space moisture problems. My team has successfully transformed hundreds of damp crawl spaces into dry, healthy environments using proven moisture control techniques.
Know your can vapor barrier be installed over damp sand crawl space terms:
– crawl space liner
– crawl space liner installation
The short answer is yes, but with important caveats. Installing a vapor barrier over damp sand requires careful assessment and proper preparation to avoid creating bigger problems.
When it’s safe to proceed:
– Sand moisture content is below 15% (measured with a moisture meter)
– You’ve addressed the source of moisture intrusion
– Proper drainage systems are in place
– You’re using appropriate barrier materials (minimum 6-mil thickness)
When you should wait:
– Standing water is present
– Sand is saturated or visibly wet
– Active leaks haven’t been repaired
– No drainage system exists
According to scientific research on crawl-space moisture, covering 95% of a crawl space floor with polyethylene vapor barrier will stop approximately 95% of ground moisture evaporation.
Why Sand Gets Damp & Stays Damp
Sand’s drainage properties can be both helpful and problematic in crawl spaces. Several factors cause sand to retain moisture:
Capillary Action: Fine sand particles create tiny spaces that draw water upward, similar to how a paper towel absorbs liquid. This means moisture from deeper soil layers can continuously migrate to the surface.
High Water Table: In areas with high groundwater levels, sand acts like a sponge, staying consistently damp. Seasonal changes can cause water levels to fluctuate, creating cycles of wet and dry conditions.
Poor Grading: When soil slopes toward the house instead of away, rainwater and snowmelt collect around the foundation. Sand’s porous nature allows this water to penetrate quickly but doesn’t always drain effectively.
Pros and Cons of Installing Directly Over Damp Sand
Advantages:
– Rapid Installation: Complete the project quickly without extensive drying
– Immediate Vapor Control: Reduces moisture migration into living spaces
– Cost Effective: Skipping extensive prep work saves time and money upfront
Disadvantages:
– Trapped Water Risk: Moisture beneath the barrier can create ideal conditions for mold growth
– Puncture Vulnerability: Damp sand shifts and creates sharp edges that can tear the barrier
– Temporary Solution: Without addressing root causes, you may need repairs sooner
– Reduced Effectiveness: Trapped moisture can compromise barrier performance
We’ve seen homeowners attempt quick fixes that created worse problems. One client installed 6-mil plastic over saturated sand without prep work. Within six months, mold growth required professional remediation costing over $3,000.
Preparation: Drying and Stabilizing the Sand Floor
Getting your sand floor properly prepared makes the difference between a vapor barrier installation that lasts decades versus one that fails within months.
Most damp sand crawl spaces didn’t get that way overnight, and they won’t dry out overnight either. When homeowners ask “can vapor barrier be installed over damp sand crawl space” without proper prep work, you’re building on quicksand if you skip the drying phase.
Think of your crawl space like a wet sponge. You wouldn’t put a plastic bag over a soaking sponge and expect good results. Proper moisture control starts with removing as much water as possible before any barrier goes down.
Air movers are essential during this process. You’ll need at least 2-3 high-velocity fans for an average crawl space – commercial-grade units that can move serious air volume. Position them to create cross-breeze that pulls moist air out of every corner.
A commercial dehumidifier (50-70 pint capacity) works alongside fans to remove moisture from the air. Your basement-grade dehumidifier won’t handle the high humidity levels you’ll encounter.
Don’t guess about moisture levels – invest in a quality moisture meter. This device tells you exactly how wet your sand is and when it’s dry enough to proceed. We aim for readings below 15% before considering barrier installation.
For serious water problems, you might need a sump pump to remove standing water first. Sometimes French drain systems are necessary to redirect groundwater permanently. Our basement waterproofing projects typically run between $4,000 and $8,000 when comprehensive moisture control systems are needed.
Drainage mats create a smart middle ground between sand and your vapor barrier. These dimpled plastic sheets form channels that let remaining moisture flow toward drain points instead of pooling under your barrier.
Steps to Reduce Moisture Before Laying Plastic
Surface grading means making sure your sand floor slopes slightly toward drains. Water follows gravity – help it along by eliminating low spots where puddles form.
Vent control during drying means sealing crawl space vents temporarily. You don’t want humid summer air flowing in to undo your drying progress.
Spot-pumping handles stubborn wet areas that won’t dry naturally. Sometimes you need to remove water mechanically before fans and dehumidifiers can work.
The drying timeline varies based on initial wetness and local climate. Most sand floors need 2-4 weeks of active drying. Rushing this step is like skipping the foundation when building a house.
We test sand moisture daily during this phase. When readings consistently stay below 15%, you’re ready to move forward.
When You Can’t Get the Sand Completely Dry
Sometimes complete drying is impossible within reasonable timeframes due to high water tables or ongoing foundation issues.
The raised-liner technique creates breathing room between damp sand and the vapor barrier. Install gravel or drainage mat first, then lay your barrier over that. This gives trapped moisture somewhere to go.
Full encapsulation treats the entire crawl space as one system. Wall insulation, sealed vents, and controlled dehumidification can handle residual sand moisture that would otherwise cause problems.
The radon-pipe option provides dual benefits. A passive radon vent system helps with soil gas issues while providing an escape route for moisture vapor. Even without radon concerns, this technique improves moisture management significantly.
Choosing the Right Vapor Barrier Material & Thickness
When dealing with can vapor barrier be installed over damp sand crawl space situations, material choice makes all the difference. Think of it like choosing between a paper towel and heavy-duty tarp for camping – both might work, but one serves you better in challenging conditions.
After three decades of installations, I’ve learned that skimping on barrier quality is like buying cheap tires. You might save money upfront, but you’ll pay later with tears, moisture problems, and early replacement.
Standard polyethylene at 6-mil thickness meets basic building codes but is designed for dry conditions. Over damp sand, this thin material punctures easily and doesn’t handle constant moisture exposure. We’ve seen too many 6-mil installations fail within 2-3 years.
Reinforced barriers at 10-15 mil thickness are our go-to recommendation for most damp sand projects. Polyester cord reinforcement dramatically improves tear resistance while keeping material flexible for pipes, piers, and corners. These typically last 10-15 years even in challenging conditions.
Heavy-duty liners at 20-mil thickness represent the premium option for serious moisture problems. They cost more – usually 3-4 times basic plastic – but often outlast your home’s life. Many include antimicrobial additives preventing mold growth if small amounts of moisture penetrate.
For a typical 1,200 square foot crawl space, upgrading from 6-mil to 20-mil material adds about $200-400 to your project. Compare that to the $3,000+ we’ve seen homeowners spend on mold remediation when cheap barriers fail.
Class 1 vs Class 2 Vapor Retarders
Class 1 vapor retarders allow 0.1 perm or less of moisture transmission – essentially creating an impermeable barrier. Most quality polyethylene sheeting and professional crawl space liners fall into this category.
Class 2 vapor retarders allow 0.1 to 1.0 perm of moisture transmission. While these work in moderate climates with minimal moisture issues, they’re not ideal for damp sand conditions where you need maximum protection.
For any project where moisture is a concern, we always recommend Class 1 materials. The tighter vapor control provides necessary protection when dealing with persistent dampness from sand substrates.
Add-On Layers: Geotextile, Rigid Foam, Radon Stack
Drainage mats installed beneath the barrier create channels for any water that penetrates to flow toward drain points rather than pooling underneath. This is particularly valuable over damp sand where some moisture intrusion is almost inevitable.
Geotextile fabric serves as protective armor between sharp sand particles and your vapor barrier, preventing punctures while allowing controlled moisture movement. The small additional cost often pays for itself by preventing tears requiring patch repairs.
Rigid foam insulation boards over the vapor barrier provide thermal protection and create a more durable walking surface. This works especially well for crawl space liner installations where you need occasional access.
Passive radon venting systems are much easier to install during initial barrier installation than as retrofit projects. Even if radon isn’t currently a concern, the pipe system can help with moisture management by providing an escape route for soil gases and excess humidity.
Step-by-Step Installation Over Damp Sand
Installing a vapor barrier over damp sand requires patience and attention to detail. After helping hundreds of homeowners tackle this challenge, I’ve learned that rushing the installation almost always leads to problems.
Before rolling out that first sheet, prepare properly. Check that sand moisture levels are below 15% or that you’ve installed proper drainage. Ensure the weather forecast shows at least two dry days ahead.
Success lies in the details. Seam overlaps need at least 12 inches, though I recommend 18 inches over damp conditions. Your barrier should run 6 to 12 inches up foundation walls to create proper moisture seals. Use high-quality butyl tape or compatible sealant rated for ground contact.
One code requirement that catches DIYers is the termite gap. Most areas require a 3-inch inspection gap at the top of your wall barrier for pest control professionals to check termite activity.
Layout & Cutting the Sheets
Think of this like planning a puzzle – minimize pieces while covering every inch. Create a simple floor plan showing exactly where each sheet goes before making cuts.
Use the longest possible sheets to reduce seams. Every seam represents a potential failure point, especially over damp sand where moisture constantly seeks weak spots.
Cut sheets 6 inches longer than needed on all sides. It’s easier to trim excess than patch together short pieces. Keep your utility knife sharp with fresh blades – dull blades create ragged edges making proper sealing nearly impossible.
Anchoring on a Sand Base
Damp sand installations get tricky here. Unlike solid clay that holds stakes firmly, sand shifts and settles, making traditional anchoring less reliable.
Heavy-duty landscape stakes driven at least 12 inches deep work well spaced every 3-4 feet along barrier edges. My preferred method uses gravel ballast – thin washed gravel over barrier edges provides excellent anchoring while allowing water drainage.
For regular access areas, install removable plywood sections over the barrier. These protect your investment while providing safe walking surfaces.
During installation, use sandbags or concrete blocks to hold barrier edges while working on sealing seams. Sand shifts just when you think everything’s positioned perfectly.
Sealing Walls, Piers & Penetrations
Mechanical fasteners every 12 inches along foundation walls provide secure attachment. Concrete screws or powder-actuated fasteners work best, with continuous sealant beads behind the barrier.
Support posts require special attention. Cut barrier material in cross patterns around each post, overlap flaps generously, and seal everything with quality tape.
Pipe and utility penetrations are often weak links in vapor barrier systems. Use pre-formed gaskets when possible, or create custom seals with compatible sealant.
Check local building codes before finalizing installation. Some areas have specific requirements for fastener types, termite gaps, or professional installation.
Optional Upgrades for High-Moisture Zones
When challenging moisture conditions exist, consider upgrades providing long-term protection.
Full encapsulation involves sealing all vents, insulating walls, and installing dehumidifiers to create completely controlled environments. While costing more upfront, this often provides best results for our crawlspace waterproofing & encapsulation projects.
Proper installation is just the beginning. The real test comes over months and years when your barrier faces constant moisture challenges. Taking time to do it right saves headaches and money down the road.
Ventilation, Monitoring & Maintenance After Installation
Installing the vapor barrier is just the beginning. Like buying a car, you wouldn’t expect it to run perfectly without regular maintenance. The same applies to your crawl space, especially when installed over damp sand.
Smart monitoring is key to long-term success. A digital hygrometer tracks relative humidity levels – keep them between 30-50%. Higher creates mold playgrounds. Lower than 30% might over-dry the space.
Moisture meters help monitor sand beneath your barrier. Check levels seasonally, especially after heavy rains or snowmelt. If readings climb above 15%, investigate what’s changed – maybe clogged gutters or French drains needing attention.
Temperature sensors catch problems early. Sudden temperature swings often indicate air leaks or ventilation issues compromising your barrier’s effectiveness.
Create a seasonal inspection routine. Spring checks winter damage and tests moisture after snowmelt. Summer watches humidity during peak moisture season. Fall inspects seals before winter. Winter checks condensation and ice dam effects.
Signs the Barrier Isn’t Working
Your nose often knows first. Musty odors creeping into living spaces are usually the earliest warning. Even small amounts of trapped water create noticeable smells drifting upward through floors.
High relative humidity readings consistently above 60% indicate the barrier isn’t working effectively. This is especially important when you’ve answered can vapor barrier be installed over damp sand crawl space with “yes” – the margin for error is smaller.
Don’t ignore upstairs problems. Floor cupping, warping, or new squeaks often indicate moisture issues below. We’ve seen homeowners spend thousands on new flooring, only to find the real problem was in their crawl space.
Visible condensation during temperature changes suggests humidity control isn’t working. Water droplets on pipes, walls, or the barrier itself mean moisture is entering your crawl space air.
Maintenance Checklist & DIY Repairs
Your annual walk-through should be thorough but not complicated. Check all seams for separation or damage – these are the most vulnerable spots. Look at wall attachments for loosening over time. Inspect high-traffic areas for punctures or tears.
Test moisture levels in several locations for a complete performance picture. Clean debris from drainage areas – clogged drains can undo all your work.
Simple repairs are often within reach. Small tears respond well to compatible patch tape – extend patches at least 6 inches beyond damage on all sides. Loose edges usually need re-anchoring with additional stakes or weights. Minor seam separation can often be fixed by cleaning and applying fresh sealant or tape.
Know when to call professionals. Large tears, extensive separation, or recurring moisture problems typically require expert assessment. Sometimes spending a few hundred on professional repair saves thousands in future damage.
Regular monitoring and maintenance turn your vapor barrier from a short-term fix into a long-term solution. With proper care, even barriers installed over damp sand can provide decades of reliable moisture control.
Frequently Asked Questions About “can vapor barrier be installed over damp sand crawl space”
After three decades of crawl space projects, I hear the same concerns repeatedly. Let me address the most common questions about can vapor barrier be installed over damp sand crawl space installations.
Is it safe to install on damp sand?
It depends on what you mean by “damp.” I’ve seen successful installations over slightly moist sand, and disasters where people tried covering standing water with plastic.
Safe installation is possible when you’ve done your homework first. Sand needs to test below 15% moisture content. You’ll need proper drainage – French drain system, sump pump, or minimum drainage mat under the barrier.
Material choice matters tremendously. Skip flimsy 6-mil plastic. You need minimum 10-mil reinforced barrier material handling challenging conditions without tearing.
We absolutely don’t recommend installation over saturated sand or anywhere with standing water. That’s asking for expensive trouble.
Will a barrier trap moisture and cause mold?
This keeps me up at night because the answer is “it depends entirely on how you do it.” Properly installed barriers don’t trap moisture – they manage and redirect it. Poorly installed ones create mold breeding grounds costing thousands to remediate.
The trap happens when you create sealed pockets with no moisture escape routes. Maybe seams aren’t properly sealed, so water gets under but can’t get out. Or there’s no drainage system, so penetrating water just sits there.
Smart prevention starts with installing drainage mats or thin gravel layers beneath barriers. This gives moisture paths to flow toward drain points instead of pooling. Proper sealing of all seams and edges is non-negotiable.
Don’t forget ventilation or dehumidification systems. Even the best barriers need backup support in challenging conditions.
How far up the crawl-space walls should the plastic run?
Building codes typically call for 6 inches up foundation walls, but can vapor barrier be installed over damp sand crawl space conditions often need more protection than minimum requirements.
Start with 12 inches when dealing with damp sand. Sand’s capillary action can pull moisture higher than expected, and you want barriers well above potential splash or wicking action.
Consider full wall coverage in severe moisture situations. Running barriers to rim joists provides maximum protection, though it’s more expensive and time-consuming.
Remember the termite inspection gap – most areas require leaving 3 inches between barriers and wood siding. Termite inspectors need foundation visibility, and covering this area can violate local codes.
Conclusion
Installing a vapor barrier over damp sand isn’t just possible – it’s often the smartest investment in your home’s long-term health. After three decades of changing damp, musty spaces into dry, comfortable environments, can vapor barrier be installed over damp sand crawl space successfully when you take the right approach.
The difference between success and costly mistakes comes down to preparation and patience. We’ve seen too many homeowners rush the process, throwing plastic over wet sand and hoping for the best. Six months later, they’re dealing with mold problems costing more than doing it right initially.
Your moisture problem won’t fix itself. Every day you wait, that damp sand pumps thousands of gallons of water vapor into your home’s air. Your floors absorb that moisture, insulation becomes less effective, and your family breathes far-from-ideal air.
